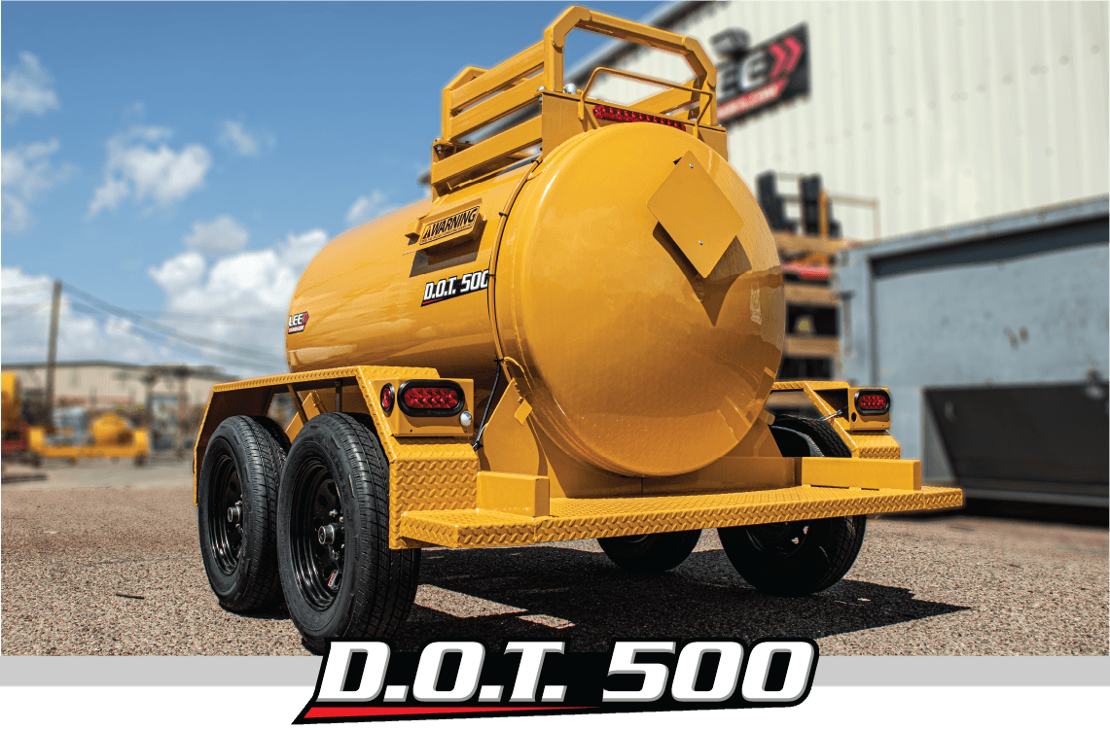

LEE>> D.O.T. 500 Diesel Fuel Trailer
Dished Flanged Ends
Dished flanged ends represent a higher quality design for fuel tanks due to their enhanced structural integrity during transport.
LEE>> D.O.T. 500 Diesel Fuel Trailer Features
Highly Visible
LEE diesel fuel trailers are highly visible in your rearview mirror which increases safety while backing up, compared to generic square designs
Tank made of 10 Ga. steel
Excellent resistance to deformation, bending, and impact. Its thickness ensures long-lasting durability, even under heavy use or harsh conditions, allowing tanks to maintain their structural integrity for years.
Rigid Trailer Frames
The heavy-duty trailer frame withstands the toughest conditions on any farm and dirt roads.
Tread Plate Fenders
Heavy-duty fenders provide a sturdy service
platform and protect the tank and tow vehicle from debris during transport.
Heavy-Duty Suction Pipe
Standard suction pipes can break with the movement of fuel in the tank. Our custom suction pipes are the strongest on the market and will never need repair.
Rear Bumper
The rear bumper provides a sturdy platform for accessing the fuel nozzle.
Vented Filler Cap
Built-in ventilation to prevent pressure buildup, allowing for smooth fuel flow while reducing the risk of spillage or leaks.
Particle and Water Filtration
Advanced filtration that protects your equipment by removing dirt, debris, and water contaminants.
Fuel Gauge
Precisely measures fuel levels within the tank.
Structure
- 4in. Channel Frame
- Gusset Plates for Added Strength
- Diamond Plate HD Fenders
- Recessed Brake and Tail Lights
Running Gear
- Dual 3,500 lb. Dexter Torflex® axles
- Forward Self-adjusting Electric Brakes
- Brakes: Standard on One Axle
- Tires: 205-75R15 (or equivalent)
- 15in. Steel Wheels
- Chrome Hub Caps
- Five (5) Year Limited Warranty
- 7,000lb. G.V.W.R.
Includes:
- Forged 2-5/16In. Coupler
- Safety Chains
- Ram Topwind Swivel Jack
- Conspicuity Tape
- Lockable Steel Battery/Equipment Storage Box
- Battery Holder and Cables
- Combustible Material Placards (4)
LEE>> D.O.T. 500 Specifications
- Capacity: 500 gallons
- LxWxH: 150in., 81in., 77in.
- Standard Pump: 12 volt, 20GPM
- Dry Weight 1878lb.
- Tires: 205-75R15 (or equivalent)
- 7,000lb. G.V.W.R.
LEE>> D.O.T. 500 Configurable Options
Powder Coating
Color Options
The DT 975 can be produced in seven different colors.
Gray is the standard and most popular color option for this model. There is a $150.00 upcharge for other colors.
Meter
Mechanical Meter
20GPM mechanical flow meter.
Digital Meter
Digital Meter 1in. NPT 4 digit LCD readout for 3 to 30 GPM (10 to 100 LPM). Factory calibrated for fuel in US gallons. Accuracy up to +/- 5%. Operating temperature range 14-130 °F.
Hose Reel
25ft. Hose Reel
Retractable hose reel with 25ft. long, 1in. wide hose.
50ft. Hose Reel
Retractable hose reel with 50ft. long, 1in. wide hose.
Build Your LEE>> D.O.T. 500 Today!
Contact our sales team
for any questions or additional information.
