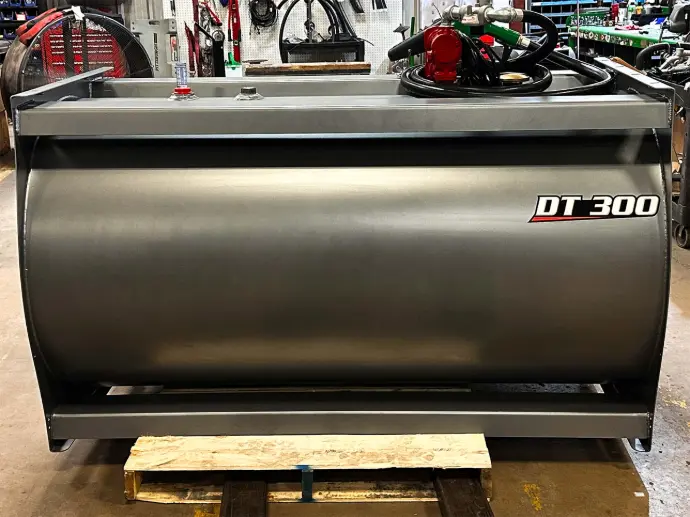

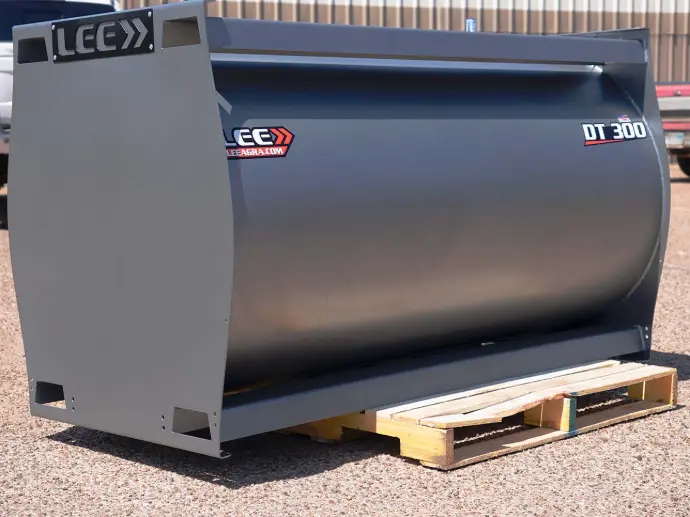

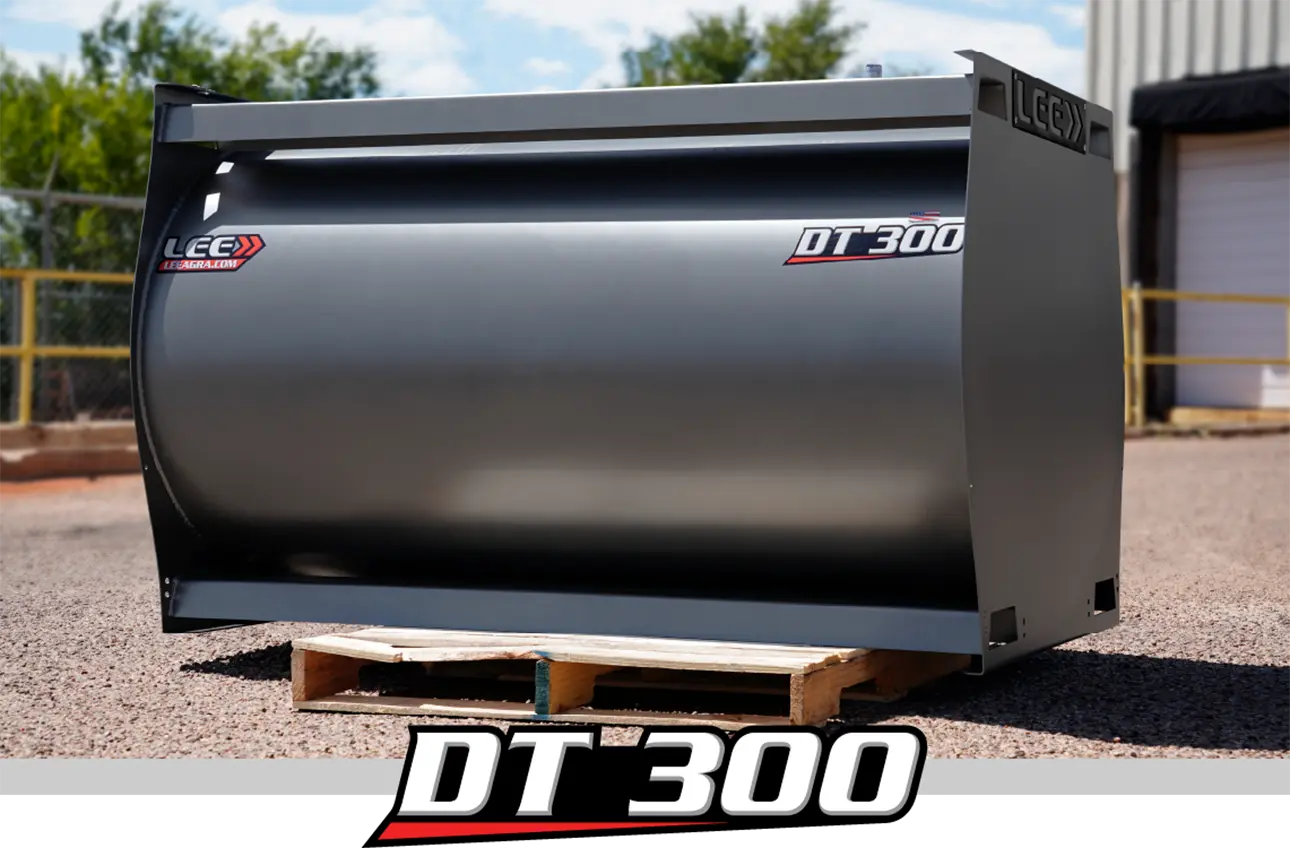

LEE>> DT 300 Diesel Fuel Tank
With a 300-gallon capacity, this portable diesel tank is engineered to safely store class-3 combustible materials.
It's the next step-up for larger-scale operations.
LEE>> DT 300 Features
Portable
Our superior quality tank is now available in a size perfect for the small acreage farmer! Easily store and transport your class 3 combustible materials without a trailer.
Piping System
Plumb 5 together to get 1,500 gallons of portable fuel storage and utilize bolt holes on flanges for mounting or stacking.
Hauling
Enjoy the standard-issue forklift rails for easy transporting.
LEE>> DT 300 Specifications
Structure
Gauge and fill cap standard
10 Ga. Steel
Superior Welding
Powder Coating
Measurements
Capacity: 300 Gallons
L W H: 69in., 38in., 42in.
Dry Weight: 525lb.
Loaded Weight: 2625lb.
Shipping
Ships on an over-sized pallet.
Wrapped in plastic
Ships LTL via standard carriers.
LEE>> DT 300 Configurable Options
Powder Coating
Color Options
The DT 975 can be produced in seven different colors.
Gray is the standard and most popular color option for this model. There is a $150.00 upcharge for other colors.
Fuel Pumps
13GPM 12V Pump
2V DC fuel, 13 GPM, operates at 20 amps, and is compatible with biodiesel up to B20, diesel, gasoline, and mineral spirits.
20GPM 12V Pump
12V DC, 20 GPM heavy-duty, cast-iron, rotary vane fuel transfer pump.
25GPM 12V Pump
Pump 25gpm, 1in. nozzle, 12ft. of 1in. hose, 1in filter kit, 18ft. DC cable with clamps, (less siphon tube)
15GPM 115V Pump
15V AC fuel, 15 GPM, *per regulation, 115V AC pump packages are shipped with wiring uninstalled.
20GPM 115V Pump
15V AC, 20 GPM, operates at 5.5 amps, and is compatible with diesel and gasoline.
Hand Pump
Delivers 20Gal. per 100 strokes for reliable manual fuel dispensing.
Fuel Nozzle
3/4in. Gray Manual
Gray manual nozzle for a 3/4in. hose.
3/4in. Green Automatic
Green automatic nozzle for a 3/4in. hose.
3/4in. Red Automatic
Red automatic nozzle for a 3/4in. hose.
1in. Gray Manual
Gray manual nozzle for a 1in. hose.
1in. Green Automatic
Green automatic nozzle for a 1in. hose.
1in. Red Automatic
Red automatic nozzle for a 1in. hose.
Hose Swivel
3/4in. Hose Swivel
It ensures smooth rotation of the connection, reducing stress on the hose and preventing tangling during operation.
1in. Hose Swivel
This is a larger option designed for higher flow rates, suitable for larger hoses and faster fuel transfers.
Meter
Mechanical Meter
20GPM mechanical flow meter.
Digital Meter
Digital Meter 1in. NPT 4 digit LCD readout for 3 to 30 GPM (10 to 100 LPM). Factory calibrated for fuel in US gallons. Accuracy up to +/- 5%. Operating temperature range 14-130 °F.
Hose Reel
25ft. Hose Reel
Retractable hose reel with 25ft. long, 1in. wide hose.
50ft. Hose Reel
Retractable hose reel with 50ft. long, 1in. wide hose.
Extra Features
Hose Tray
Helps manage hose, without the cost of a hose reel. Hose storage tray for hose lengths options longer than standard 12ft.
Tank Vent
For most applications, the included vented fuel cap is all that is needed. This is only if you need an additional vent. Not recommended for mobile tank use.
Tank Riser
This option is most often purchased when connecting two tanks. Raises tank 3in. off-ground for plumbing to be installed under the tank.
Work Platform
Acts as a work surface or an area to mount tank accessories such as a battery box. Can mount up to two platforms per tank.
HD Battery Box
The battery box is designed to protect the battery that powers the pump. They are four versions available to fit what you need for your tank.
Build Your LEE>> DT 300 Today!
Contact our sales team
for any questions or additional information.
