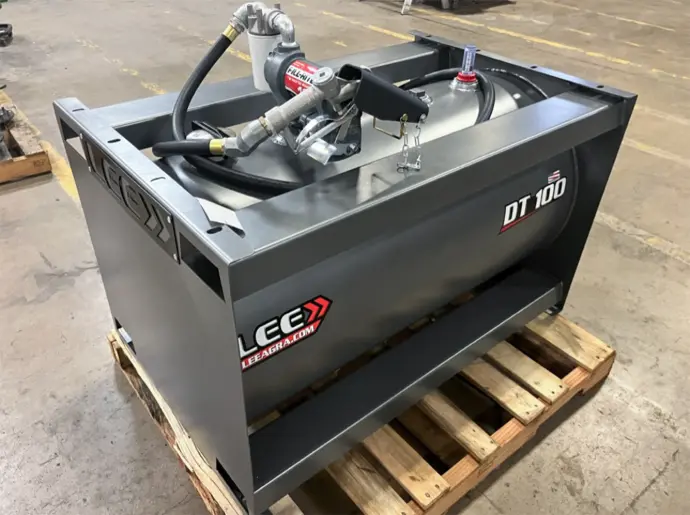

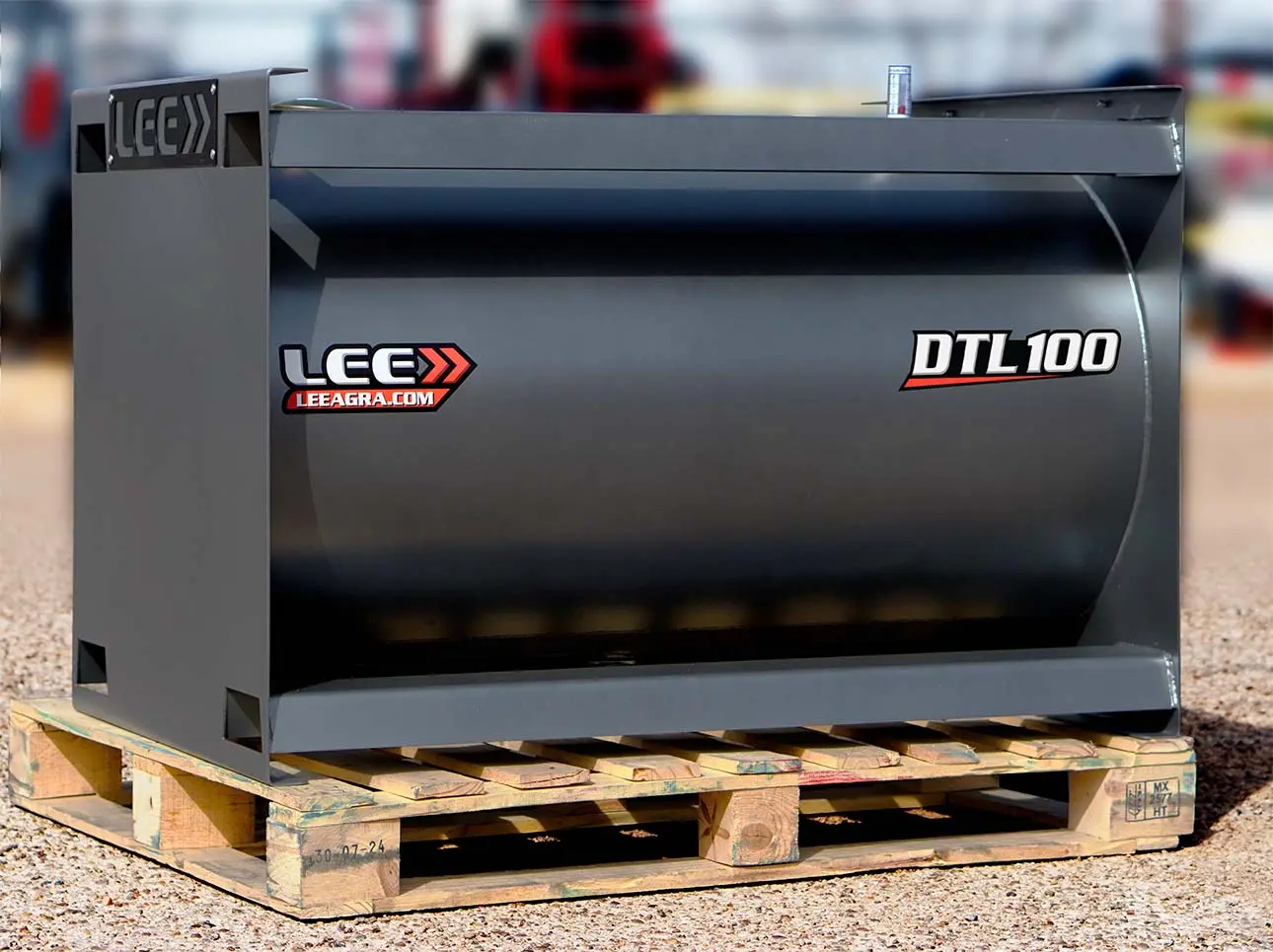

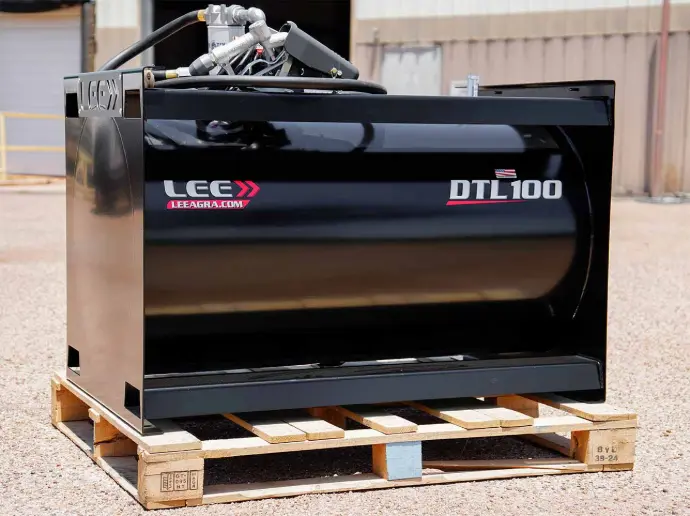

LEE DTL 100 Diesel Fuel Tank

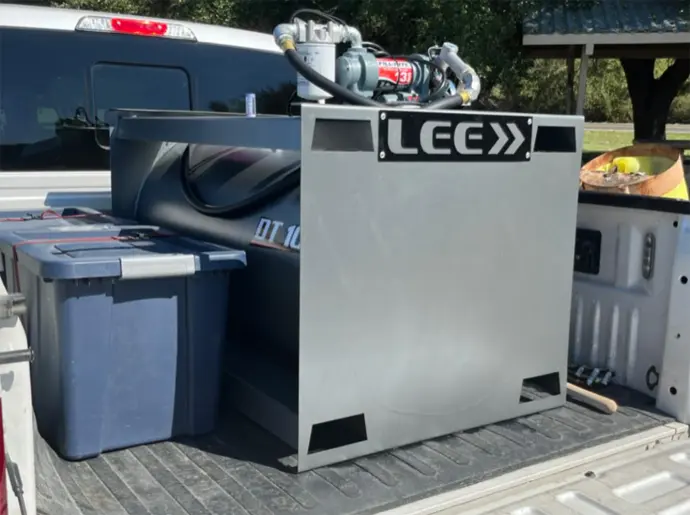

100-gallons is now more portable than ever with the DTL 100 diesel fuel tank. It’s made to fit in in the bed of your truck!
LEE DTL 100 Features
Portable
Easily store and transport your class 3 combustible materials without a trailer.
Low-Profile
Lower height and extended length design for optimized storage and accessibility.
Hauling
Enjoy the standard-issue forklift rails for easy transporting.
LEE DTL 100 Specifications
Structure
- Gauge and fill cap standard
- 10 Ga. Steel
- Superior Welding
- Powder Coating
Measurements
- Capacity: 100 Gallons
- LxWxH: 47.25in., 33.5in., 32in.
- Dry Weight: 190lb.
- Loaded Weight: 1000lb.
Shipping
- Fits on a standard size pallet.
- Wrapped in plastic
- Ships LTL via standard carriers.
LEE DTL 100 Configurable Options
Powder Coating
Color Options
The DT 975 can be produced in seven different colors.
Gray is the standard and most popular color option for this model. There is a $150.00 upcharge for other colors.
Fuel Pumps
13GPM 12V Pump
12V DC fuel, 13 GPM, operates at 20 amps, and is compatible with biodiesel up to B20, diesel, gasoline, and mineral spirits.
20GPM 12V Pump
12V DC, 20 GPM, 19 amps, 1in. automatic nozzle, heavy-duty, cast-iron, rotary vane fuel transfer pump.
15GPM 115V Pump
115V AC fuel, 15 GPM, *per regulation, 115V AC pump packages are shipped with wiring uninstalled.
20GPM 115V Pump
115V AC, 20 GPM, operates at 5.5 amps, and is compatible with diesel and gasoline.
Hand Pump
Delivers 20Gal. per 100 strokes for reliable manual fuel dispensing.
Hose Reel
25ft. Hose Reel
Retractable hose reel with 25ft. long, 1in. wide hose.
Meter
Mechanical Meter
20GPM mechanical flow meter.
Digital Meter
Digital Meter 1in. NPT 4 digit LCD readout for 3 to 30 GPM (10 to 100 LPM). Factory calibrated for fuel in US gallons. Accuracy up to +/- 5%. Operating temperature range 14-130 °F.
Hose Swivel
3/4in.
3/4in. hose swivel is for the 13gpm and 15gpm pump packages.
1in.
1in. hose swivel is for 20gpm and 25gpm pump packages.
Extra Features
Hose Tray
Helps manage hose, without the cost of a hose reel. Hose storage tray for hose lengths options longer than standard 12ft.
Tank Vent
For most applications, the included vented fuel cap is all that is needed. This is only if you need an additional vent. Not recommended for mobile tank use.
Tank Riser
This option is most often purchased when connecting two tanks. Raises tank 3in. off-ground for plumbing to be installed under the tank.
Work Platform
Acts as a work surface or an area to mount tank accessories such as a battery box. Can mount up to two platforms per tank.
Build Your LEE DTL 100 Today!
Contact our sales team
for any questions or additional information.
