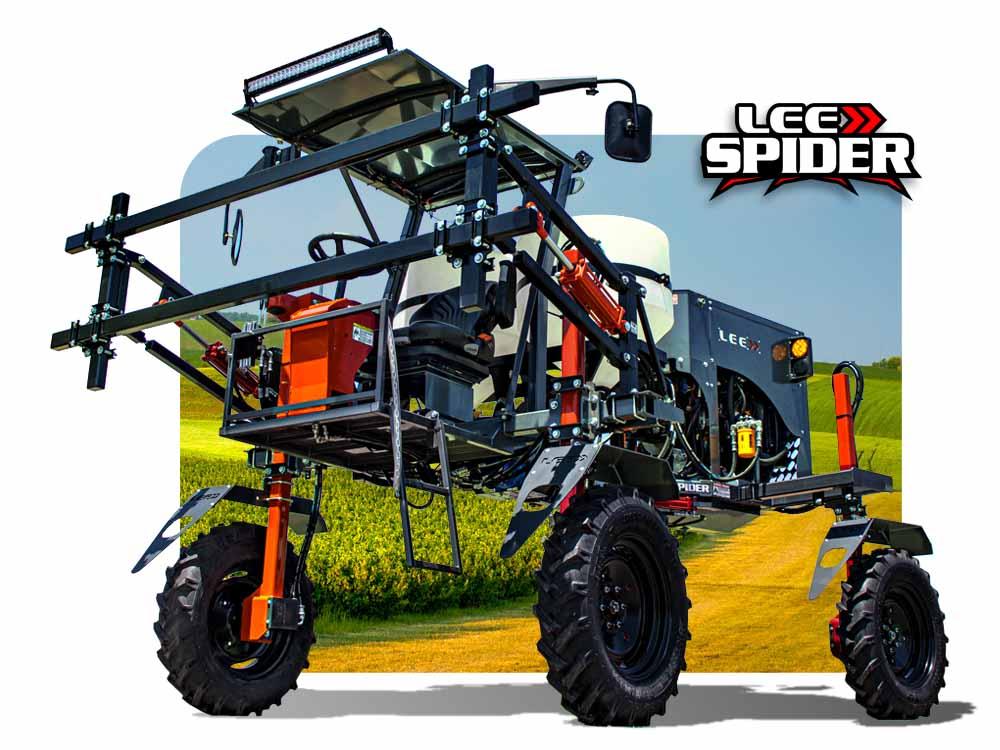

LEE Spider High Clearance Sprayer
With increased horsepower, crop clearance, and an array of options, the LEE Spider solves the problems of spraying in difficult conditions.
Diesel-Powered Spot Spraying
Designed to cover crops with spray solution without damaging the yield, the 48HP diesel engine gives extra power in the field.
Matched with our largest tires, you'll get maximum crop clearance.
Hydraulic leg adjustments allow this tractor to work for any type of crop in any environment.
4-Wheel Hydrostatic Drive
No axles.
No transmission.
The wheels are powered individually by the hydraulic system, which means great power through tough terrain.
Articulated
Steering
The bending point where the two frames come together allows the back wheels and front wheels to turn simultaneously. This makes steering easier and allows for sharper turns in and out of rows.
Oscillating
Chassis
The frame's oscillation allows the tractor to travel over rugged terrain and maintain better balance on slopes. This also helps take tension off the frame, whereas a rigid solid frame would take the motion's brunt.
Configurable Options
Tank Packages.....................
Our applicator tanks are molded from high-density polyethylene and are both impact and chemical resistant.
They feature a lid that threads directly into the tank's fill-opening to prevent the sloshing or leaking of tank contents during transport or application.
150 gallon tank and plumbing with hydraulic centrifugal pump.
110-gallon tank and plumbing with hydraulically powered centrifugal pump.

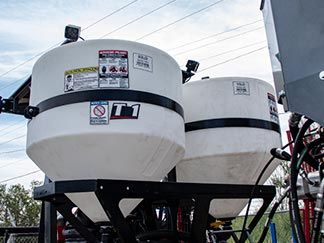

Twin 60-gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump.
Twin 30-gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump.
One 110-gallon applicator tank and four 15 gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump.
One 110-gallon applicator tank and two 35 gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump. Low access to the quick fill valve. Remote actuated recirculation shutoff valve.
Customizable options are available. Contact LeeAgra sales for additional information.
Spray Pumps.........................
Many pesticides used to control weeds, insects, and disease in field crops, ornamentals, turf, fruits, vegetables, and rights-of-way are applied with hydraulic sprayers.
Hypro 9303-C Centrifugal Cast Iron Pump. 115GPM @ 93PSI
Hypro D30 Diaphragm Pump. 9.6GPM @ 580PSI
Customizable options are available. Contact LeeAgra sales for additional information.
Spray Controls......................
System monitors detect the operating conditions of the total sprayer. They are sensitive to variations in travel speed, pressure, and flow rate.

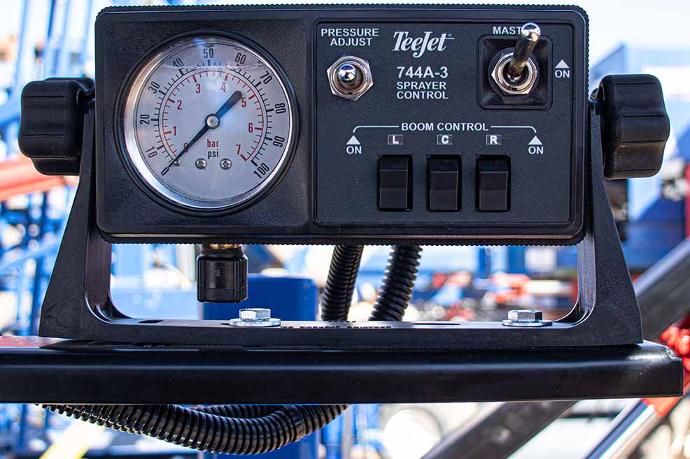

Three-section boom control.
Six-section auto rate boom control.
Provides manual spray control in a compact package. Allows for the choice of liquid-filled to given PSI on the pressure gauge.
Five-section boom control and valves with GUI and auto rate control.
Customizable options are available. Contact LeeAgra sales for additional information.
Lifts..........................................
Loaders make light work of small farm and gardening tasks including lifting and transporting material such as wood, rocks, soil, and debris.
Paralleling arm front lift. Quick attach pair sold separately.
Paralleling arm rear lift. Quick attach pair sold separately.
Both paralleling arm front and rear lift installed on one high-clearance tractor. Quick attach pair sold separately.
Lift Attachment w/ Quick Attach......................................
Applicable for both front and rear parallel attachments.
30ft. Truss manual fold spray T-boom only.
25ft. hydraulically folding multiuse boom. Folds under 120in. wide for legal transportation.
30ft. hydraulically folding spray boom. Folds under 120in. wide for legal transportation.
Customizable 30ft. wiper booms. Contact LeeAgra sales for more information.
Multi-section booms ideal for spraying multiple solutions. Learn More>
Quick attach system ready for existing compatible attachments. *Boom not included.
Nozzles....................................
Single Nozzle Body
Triple Nozzle Body
Nozzles determine the rate of pesticide distribution at a particular pressure, forward speed, and nozzle spacing.
Applicable for both front and rear parallel attachments.
12 nozzle bodies on the entirety of boom length.
16 nozzle bodies on the entirety of boom length.
18 nozzle bodies on the entirety of boom length.
24 nozzle bodies on the entirety of boom length.
27 nozzle bodies on the entirety of boom length.
32 nozzle bodies on the entirety of boom length.
36 nozzle bodies on the entirety of boom length.
12 nozzle bodies on the entirety of boom length.
16 nozzle bodies on the entirety of boom length.
18 nozzle bodies on the entirety of boom length.
24 nozzle bodies on the entirety of boom length.
27 nozzle bodies on the entirety of boom length.
32 nozzle bodies on the entirety of boom length.
36 nozzle bodies on the entirety of boom length
Nozzle Spacing.....................
Applicable for both front and rear parallel attachments.
Nozzle bodies for 1-section boom at 15in. spacing
Nozzle bodies for 1-section boom at 20in. spacing
Nozzle bodies for 1-section boom at 30in. spacing
Nozzle bodies for 3-section boom at 15in. spacing
Nozzle bodies for 3-section boom at 20in. spacing
Nozzle bodies for 3-section boom at 30in. spacing
Nozzle bodies for 6-section boom at 15in. spacing
Nozzle bodies for 6-section boom at 20in. spacing
Nozzle bodies for 6-section boom at 20in. spacing
Attached to your machine.
Trimble AutoPilot Package FmX. Navigation Controller III and TMX 2050 Display Rapid Ready Warranty. Learn More>
Technical Specifications
ENGINE
48HP Diesel
TOP SPEED
11 MPH
TIRE & WHEEL
7.2in. x 30in.
Cleated
AUX. HYDRAULIC FLOW
Optional
ROW WIDTH
Manually Adjustable 60in. - 90in.
UNDERFRAME CLEARANCE
Manually adjustable 42in. - 72in.
TURNING RADIUS
Articulating Frame
90in. minimum turning radius
OPERATOR STATION
Open, adjustable suspension seat & seatbelt
SOLUTION TANK
Optional up to 150 gallons
SOLUTION PUMP
Optional Hydraulic Centrifugal/Piston Pump
BRAKE SYSTEM
Dynamic: Hydrostatic
Static: Spring-applied hydraulic released wet disc
STEERING
Center Steering Wheel
SPEED CONTROL
Manual/Side Shift
RUNNING LIGHTS
Amber/Red rear lights
WORK LIGHTS
Wide-angle LED work lights, Directional Boom Lighting
FUEL TANK CAPACITY
14 Gallons
HYDRAULIC RESERVOIR CAPACITY
20 Gallons
DRY WEIGHT
3300 lb.
