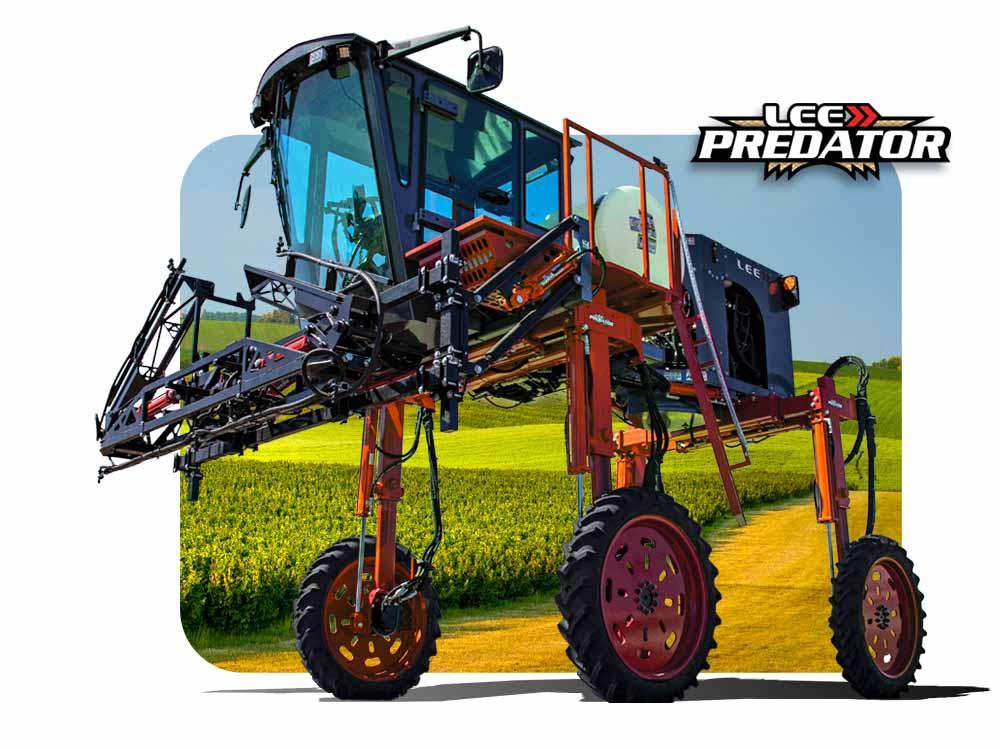

LEE Predator

This new high-clearance sprayer is a lightweight platform that retains the features of heavier sprayers.


Designed for Specialty Crops
and More



The LEE Predator has hydraulically adjustable row spacing and crop height, and a powerful diesel engine for challenging terrain.

This sprayer is ideal for specialty crops including fresh produce, blueberries, strawberries, raspberries,
wine grapes, seeds, flowers, hemp, cannabis and Christmas trees. More space and less damage for your crops means a higher yield.

Furthermore, it can be configured as a research sprayer or any type of agriculture.

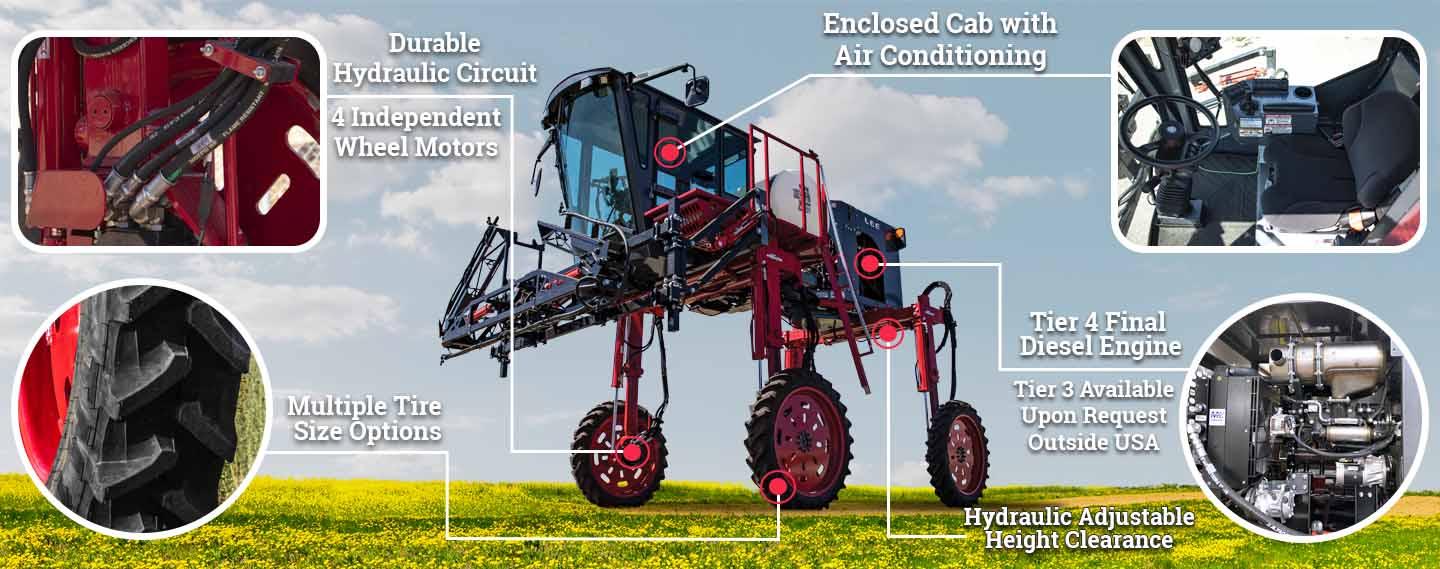

4-Wheel
Hydrostatic Drive

No axles for increased ground clearance.
The wheels are powered individually by the hydraulic system, which means great power through tough terrain.

Articulated
Steering

The bending point where the two frames come together allows the back wheels and front wheels to turn simultaneously. This makes steering easier and allows for sharper turns in and out of rows.

Oscillating
Chassis

The frame's oscillation allows the sprayer to travel over rugged terrain and maintain better balance on slopes. This also helps take tension off the frame, whereas a rigid solid frame would take the motion's brunt.

Operator Station Options

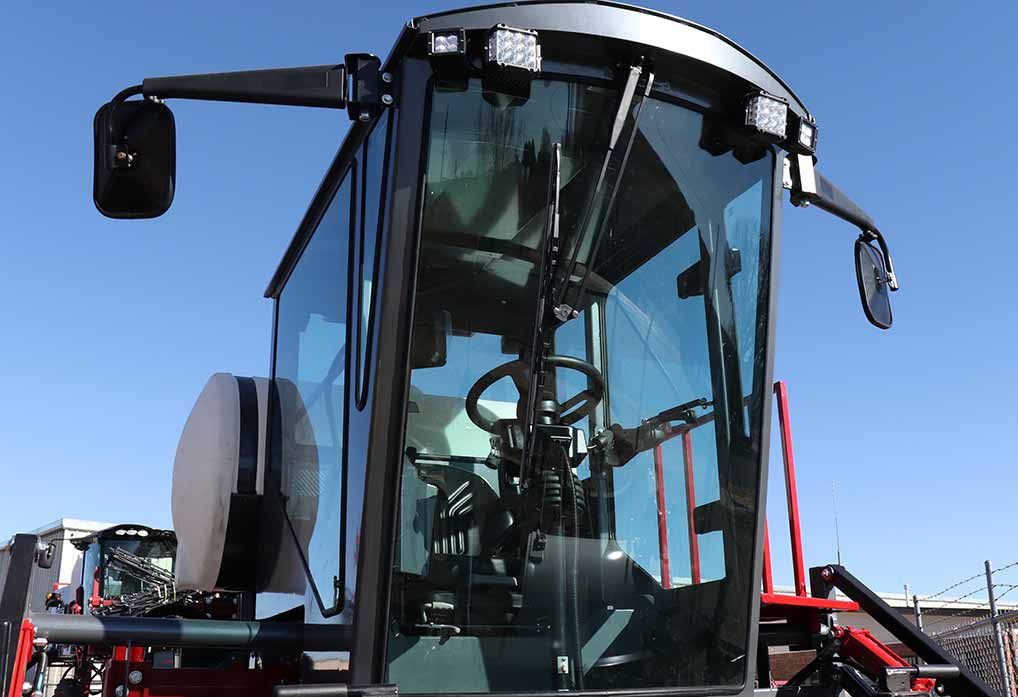

Enclosed Cab


Configure Closed Cab

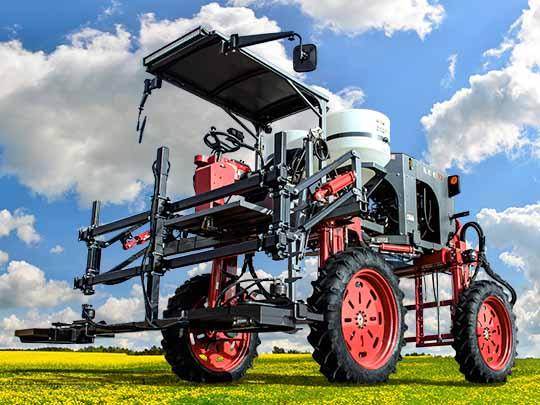

Open Rider Station

Configure Open Rider Station

Sprayer Markets

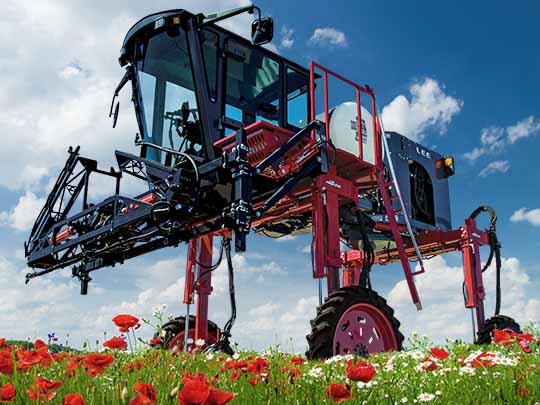

Flower Nursery Sprayer

In most cases, nurseries need a light, compact machine that has high clearance capabilities to travel above the crops. The LEE Predator is perfect for this.
Learn more >>

Hoop House Sprayer

Conventional sprayers simply will not fit in a hoop house operation. With high clearance and a low profile, the LEE Predator is perfectly suited for tight hoop house environments.

Configurable Options


Tank Packages.....................

Our applicator tanks are molded from high-density polyethylene and are both impact and chemical resistant.

They feature a lid that threads directly into the tank's fill-opening to prevent the sloshing or leaking of tank contents during transport or application.

200 Gallon solution tank assembly and plumbing with a hydraulically powered centrifugal pump.

150 Gallon solution tank assembly and plumbing with a hydraulically powered centrifugal pump.

110 Gallon solution tank assembly and plumbing with a hydraulically powered centrifugal pump.

 Twin 60-gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump.

One 110-gallon applicator tank and four 15 gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump.

One 110-gallon applicator tank and two 35 gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump. Low access to the quick fill valve. Remote actuated recirculation shutoff valve.

One 110-gallon applicator tank and two 30 gallon inductor tanks and plumbing with a hydraulically powered centrifugal pump.

 Customizable options are available. Contact LeeAgra sales for additional information.

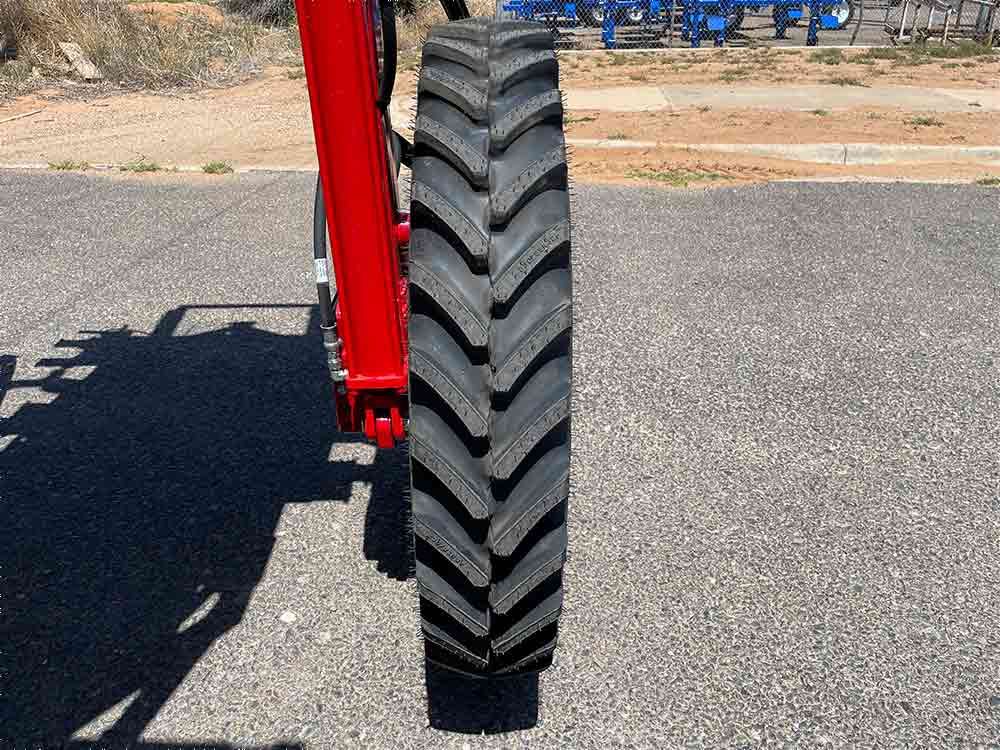

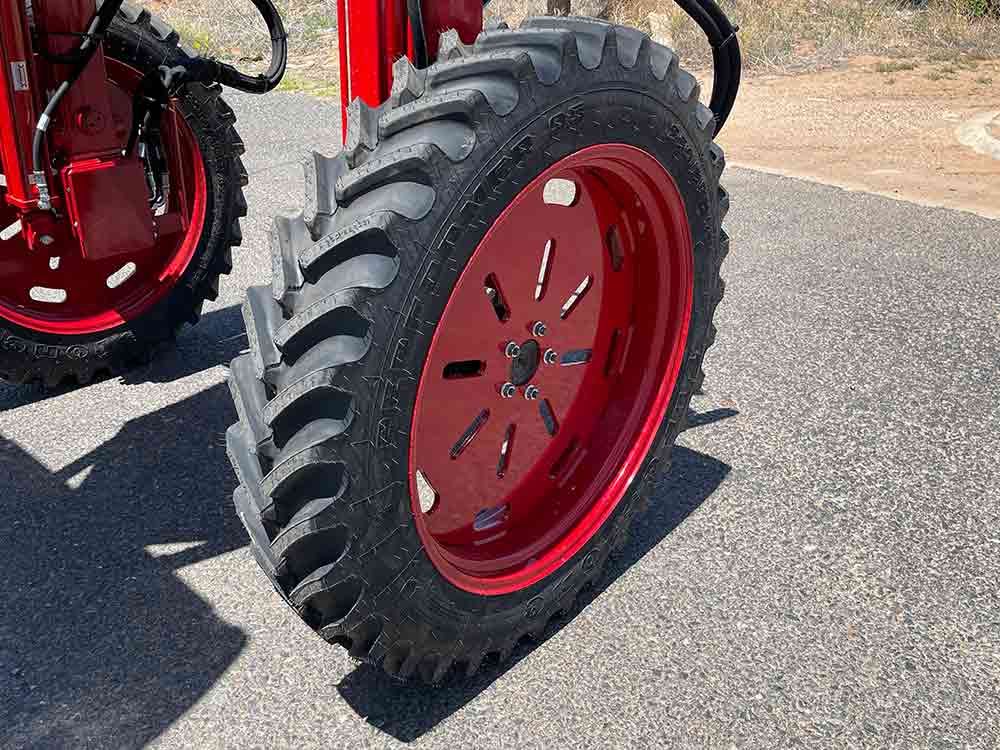

Tire & Wheel..........................

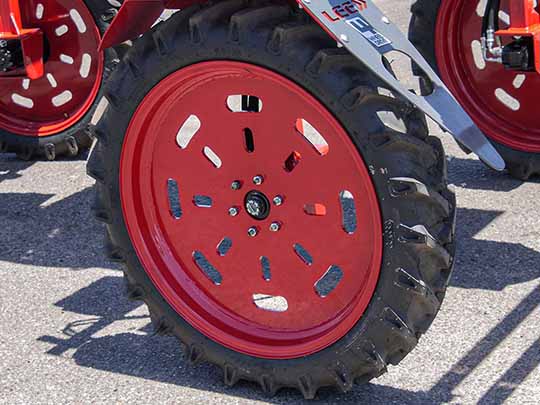

 7.2in. x 30in. 6Ply cleated wheel.

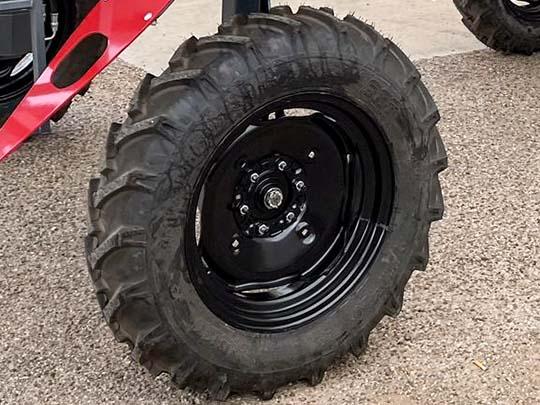

 7.5in. x 20in. 4Ply cleated wheel.

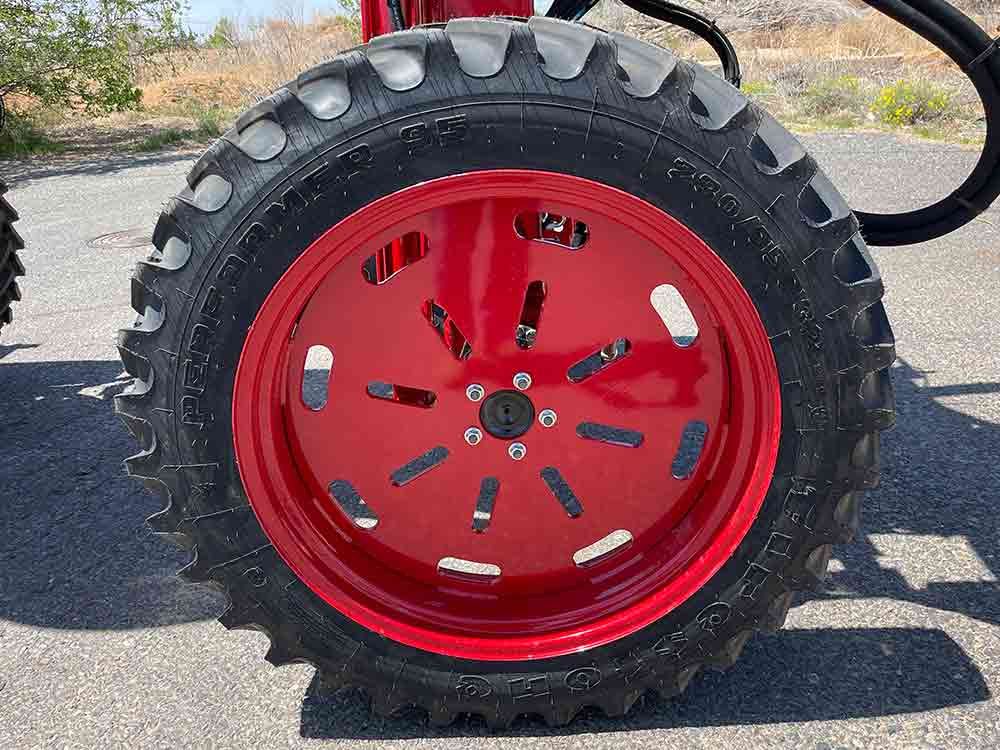

9.5in. x 32in. 4Ply cleated wheel.

Rider Station.........................
Open with adjustable suspension seat and options for aftermarket enclosure for A/C and filtration.

Non-enclosed cab structure.

Fully enclosed cab option with cooling system.

Height & Width Adjustment............................

Hydraulic vertical height adjustment, 24in. of stroke
Hydraulic horizontal row spacing adjustment 72in. - 120in.

Solution Spray Pumps.......

Hypro 9303-C Centrifugal Cast Iron Pump.
115GPM @ 93PSI



Hypro D30 Diaphragm Pump.
9.6GPM @ 580PSI

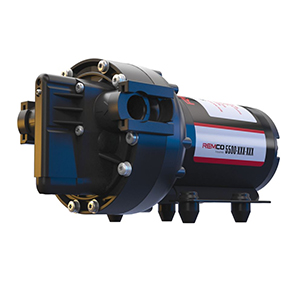

Remco
Electric 12V 5.3GPM Pump

Customizable options are available. Contact  LeeAgra sales for additional information.

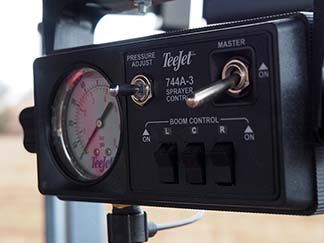

Spray System Controls.......

System monitors detect the operating conditions of the total sprayer. They are sensitive to variations in travel speed, pressure, and flow rate.

Provides manual spray control in a compact 3-section package. Allows for the choice of liquid-filled to 110 PSI on pressure gauge.



3-section Provides manual spray control in a compact package. Allows for the choice of liquid-filled to 300 PSI on pressure gauge.

Designed to provide uniformity of spray applications at any vehicle speed. Also works as an area monitor, speed monitor, and volume totalizer for a 3-section boom.

Provides precision product dispensing for up to six boom sections. Dual application rates can be programmed into the Raven 450 system.


Customizable options available. Contact LeeAgra sales for additional information.

 Customizable options are available. Contact LeeAgra sales for additional information.

Lifts.........................................

Paralleling arm front lift. Quick attach pair sold separately.

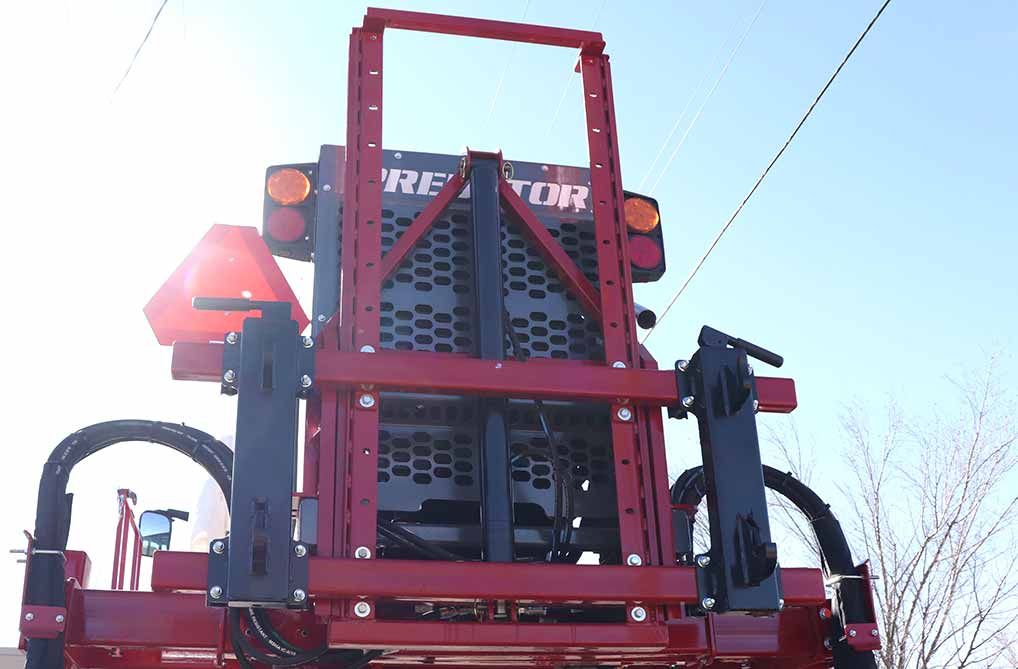

Vertically telescopes 36in. along opposing cam followers for increased rigidity and strength. Quick attach pair sold separately.

Both a paralleling arm front lift and a telescoping rear lift installed on one high-clearance tractor.  Quick attach pair sold separately.

Lift Attachment w/ Quick Attach......................................

The same options are available for both front and rear lifts .

 30ft. Truss manual fold spray T-boom only.

 25ft. hydraulically folding multiuse boom. Folds under 120in. wide for legal transportation.

30ft. hydraulically folding spray boom. Folds under 120in. wide for legal transportation.

 40ft. hydraulically folding multiuse boom.

45ft. hydraulically folding boom. Folds over 120in. wide. Not legally transportable on US highways.

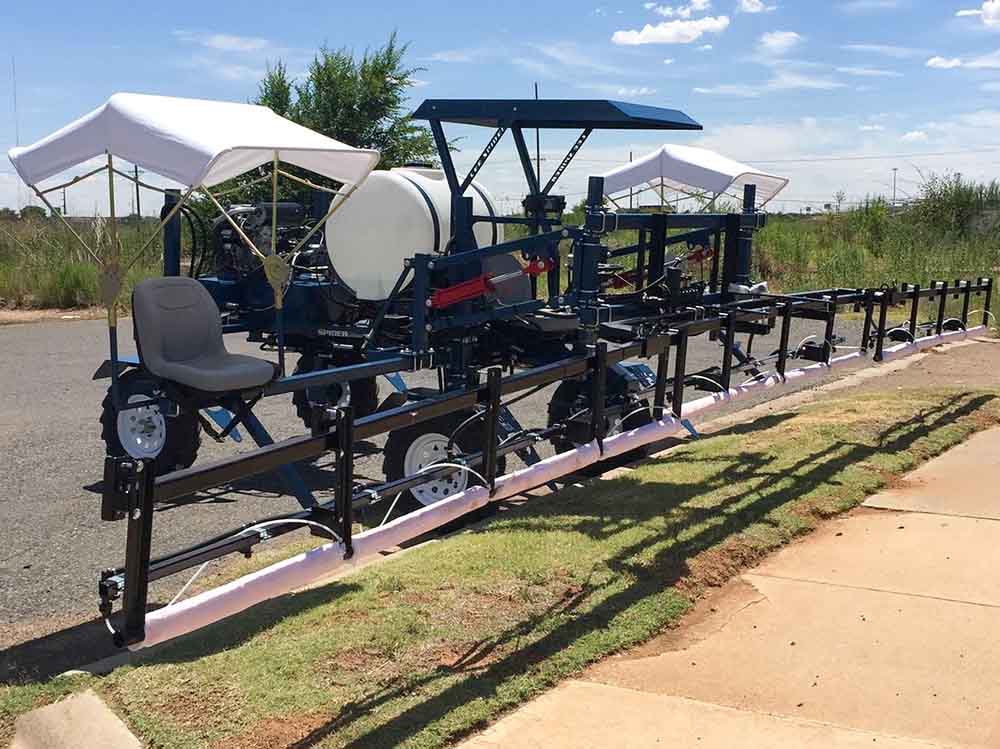

 Customizable 30ft. wiper booms. Contact LeeAgra sales for more information.

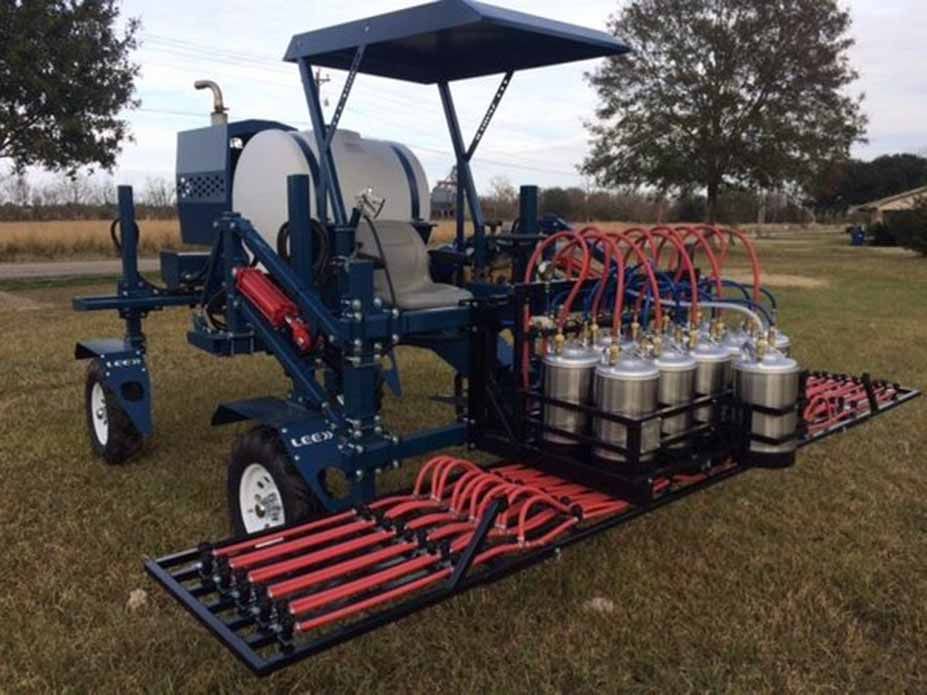

       Multi-section booms ideal for spraying multiple solutions. Learn More>

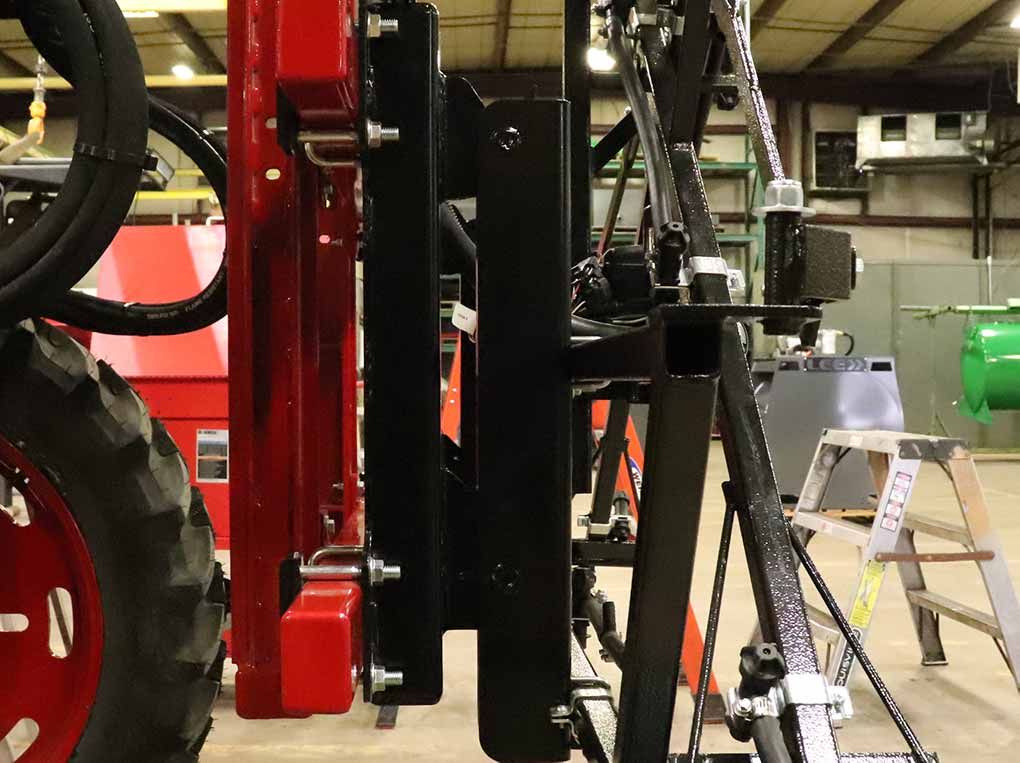

Quick attach system ready for existing compatible attachments. *Boom not included.

Nozzles....................................


Single Nozzles


Triple Nozzles

Applicable for both front and rear attachments.

12 nozzle bodies on the entirety of boom length.

16 nozzle bodies on the entirety of boom length.

18 nozzle bodies on the entirety of boom length.

24 nozzle bodies on the entirety of boom length.

27 nozzle bodies on the entirety of boom length.

32 nozzle bodies on the entirety of boom length.

36 nozzle bodies on the entirety of boom length.

12 nozzle bodies on the entirety of boom length.

16 nozzle bodies on the entirety of boom length.

18 nozzle bodies on the entirety of boom length.

24 nozzle bodies on the entirety of boom length.

27 nozzle bodies on the entirety of boom length.

32 nozzle bodies on the entirety of boom length.

36 nozzle bodies on the entirety of boom length.

Nozzle Spacing.....................

Applicable for both front and rear attachments.

  Nozzle bodies on a 1-section boom at 15in. spacing

 Nozzle bodies on a 1-section boom at 20in. spacing

  Nozzle bodies on a 1-section boom at 30in. spacing

Nozzle bodies on a 3-section boom at 30in. spacing

Nozzle bodies on a 3-section boom at 30in. spacing

Nozzle bodies on a 3-section boom at 30in. spacing

Nozzle bodies on a 6-section boom at 15in. spacing

Nozzle bodies on a 6-section boom at 20in. spacing

Nozzle bodies on a 6-section boom at 30in. spacing

Customizable Add-Ons......

Contact  LeeAgra sales for additional
information and options.

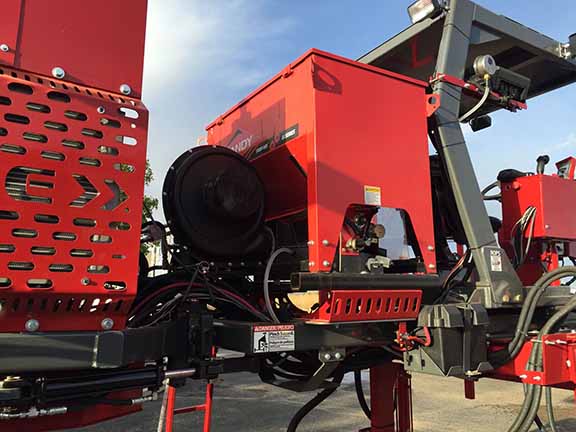

Attached to the rear side of the machine.

Trimble AutoPilot Package FmX. Navigation Controller III and TMX 2050 Display Rapid Ready Warranty. Learn More>

Technical Specifications


ENGINE  ..............................................................

Tier 4 Final 68HP Diesel


TOP SPEED .........................................................

12 MPH


TIRE & WHEEL .................................................

7.2in. x 30in. Standard
Cleated Tread
Other tire options available


AUX. HYDRAULIC FLOW ...............................

10GPM @3000 PSI
Custom packages available


ROW WIDTH ......................................................

Hydraulically Adjustable
72in. - 120in.


UNDERFRAME CLEARANCE .......................

Hydraulically adjustable
54in. - 78.25in. with 7.2in. x 30in. Tires


TURNING RADIUS ...........................................

Articulating Frame
96in. minimum turning radius


OPERATOR STATION .......................................

Open or enclosed, adjustable suspension seat, air conditioning, and filtration


SOLUTION TANK .............................................

Optional up to 200 gallons


SOLUTION PUMP .............................................

Optional Hydraulic Centrifugal/Piston Pump


BRAKE SYSTEM ..............................................

Dynamic: Hydrostatic

Static: Spring-applied hydraulic released wet disc


SPEED CONTROL ..............................................

Canbus joystick hydrostatic control with electronic engine control


RUNNING LIGHTS ...........................................

Amber/Red rear lights


WORK LIGHTS ..................................................

Wide-angle LED work lights, directional boom lighting


FUEL TANK CAPACITY ..................................

20 Gallons


HYDRAULIC RESERVOIR CAPACITY...........

22.5 Gallons


DRY WEIGHT .....................................................

7800lb.
