LEE DT 100 Diesel Fuel Tank

Our superior quality tank is now available in a size perfect for the small acreage farmer!

LEE DT 100 Features


Easily store and transport your class 3 combustible materials without a trailer.

Piping System

Plumb 5 together to get 500 gallons of portable fuel storage and utilize bolt holes on flanges for mounting or stacking.


Enjoy the standard-issue forklift rails for easy transporting.

LEE DT 100 Specifications


  • Gauge and fill cap standard

  • 10 Ga. Steel

  • Superior Welding

  • Powder Coating


  • Capacity: 100 Gallons

  • LxWxH: 24in., 38in.,  41.25in.

  • Dry Weight: 190lb.

  • Loaded Weight: 1000lb.


  • Fits on a standard size pallet.

  • Wrapped in plastic

  • Ships LTL via standard carriers.

LEE DT 100 Configurations


Fill-Rite 13GPM 12V

  • Biodiesel up to B20, Diesel, Gasoline, Mineral Spirits

  • 20amps

  • DC

Fill-Rite Piston Hand Pump FR152

  • Diesel, Gasoline, Light Oils, Mineral Spirits

  • 20 GL/100 strokes

No Pump

Don't need a pump? No problem!


GPI Digital Fuel Meter

  • Gasoline up to E15, Diesel up to B20, Kerosene

  • 10 to 100 LPM (3 to 30 GPM)

  • 300 PSI (20.7 bar)

No Meter

    Configure Your LEE DT 100 Today!

    Contact our sales team  for any questions or additional information.

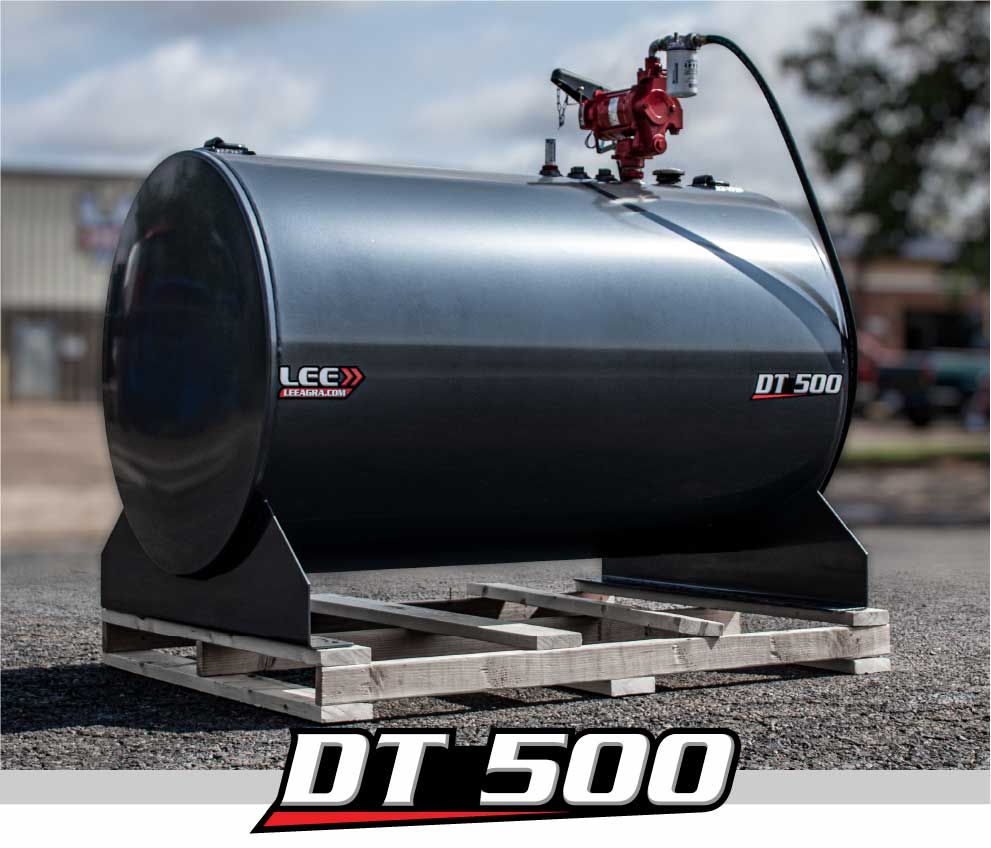

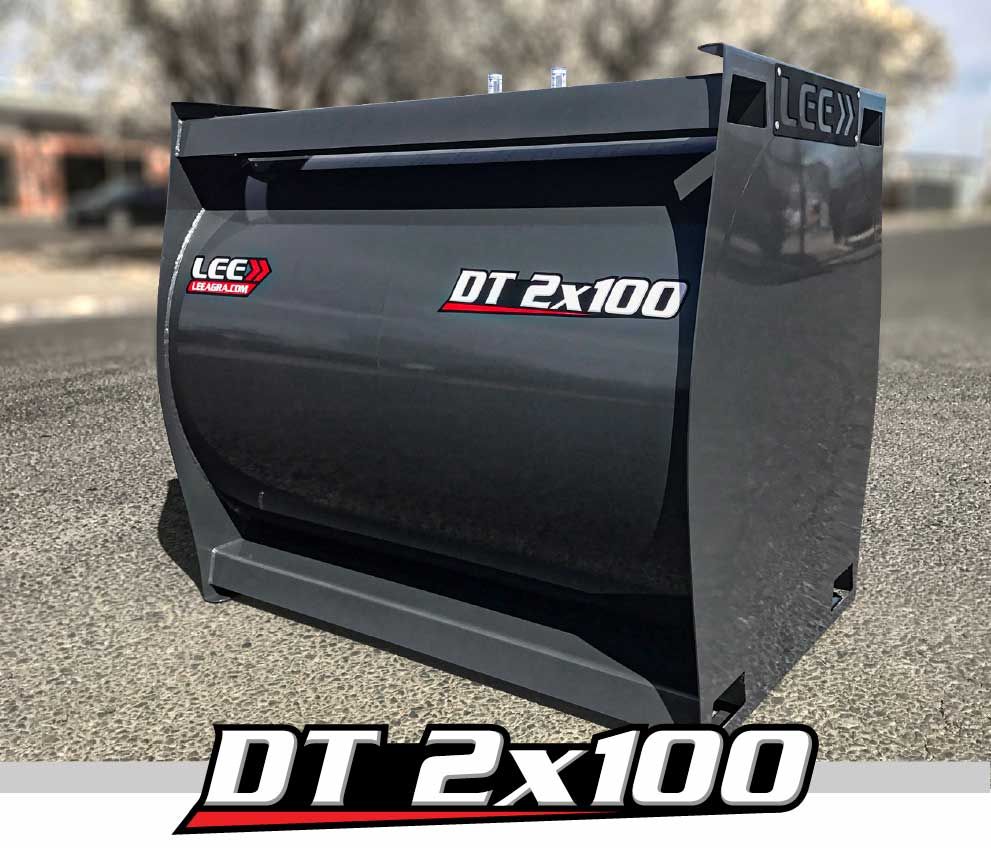

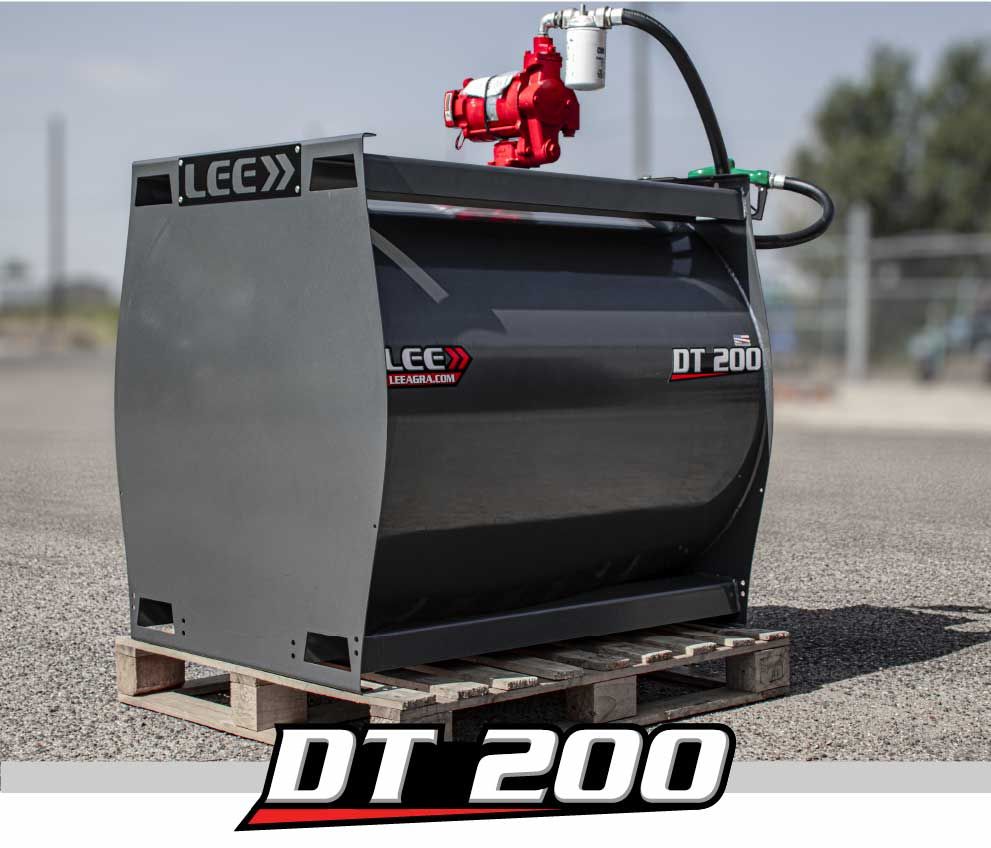

    More Diesel Fuel Tanks
