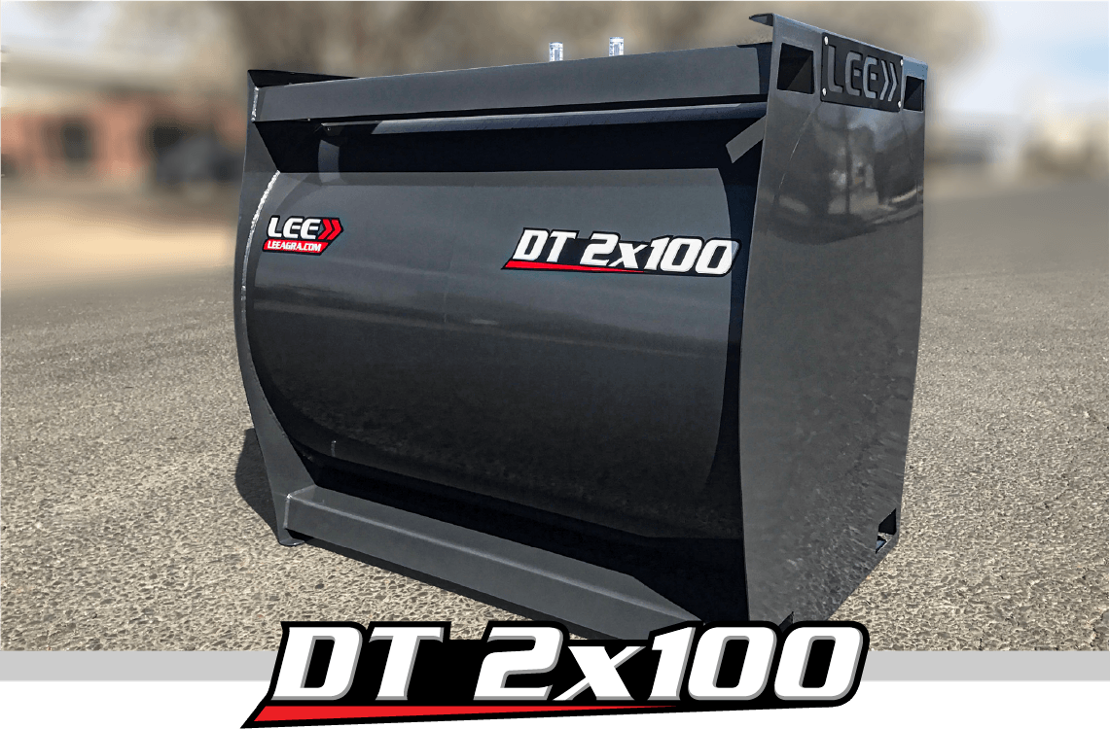

LEE DT 2x100 Diesel Fuel Tank

Two 100 gallon tanks divided for storing separate materials.

LEE DT 2x100 Features


Portable

Easily store and transport two different class 3 combustible materials without a trailer.

Piping System

Plumb 5 together to get 1000 gallons of portable fuel storage and utilize bolt holes on flanges for mounting or stacking.

Hauling

Enjoy the standard-issue forklift rails for easy transporting.

LEE DT 2x100 Specifications


Structure

  • Two (2) gauges, two (2) fill caps
  • 10 Ga. Steel
  • Superior Welding
  • Powder Coating

Measurements

  • Capacity: 200 Gallons
  • LxWxH: 48in., 38in., 42in.
  • Dry Weight: 460lb.
  • Loaded Weight: 1920lb.

Shipping

  • Fits on a standard size pallet
  • Wrapped in plastic
  • Ships via standard carriers

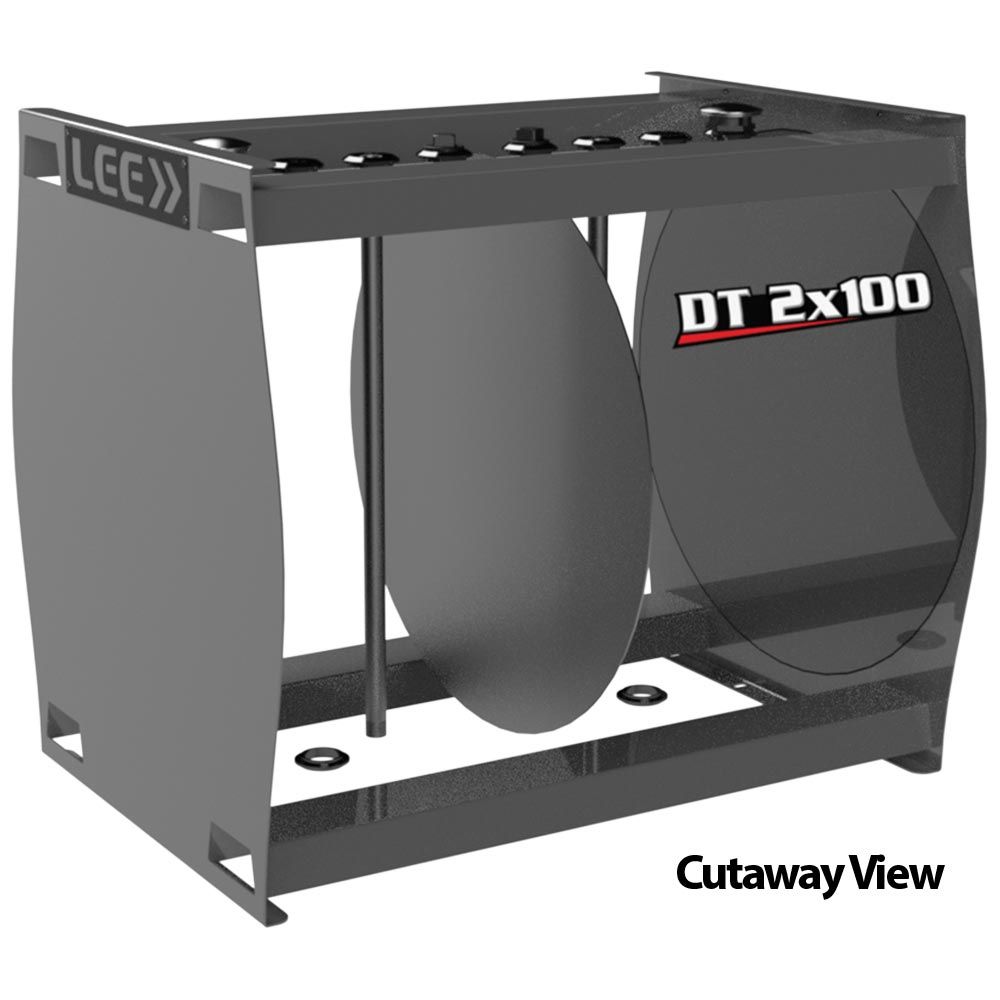

Two Separate Compartments



LEE DT 2x100 Configurable Options


Powder Coating

Color Options

The DT 975 can be produced in seven different colors.

Gray is the standard and most popular color option for this model. There is a $150.00 upcharge for other colors.

Fuel Pumps

13GPM 12V Pump

12V DC fuel, 13 GPM, operates at 20 amps, and is compatible with biodiesel up to B20, diesel, gasoline, and mineral spirits.

20GPM 12V Pump

12V DC, 20 GPM, 19 amps, 1in. automatic nozzle, heavy-duty, cast-iron, rotary vane fuel transfer pump.

15GPM 115V Pump

115V AC fuel, 15 GPM, *per regulation, 115V AC pump packages are shipped with wiring uninstalled.

20GPM 115V Pump

115V AC, 20 GPM, operates at 5.5 amps, and is compatible with diesel and gasoline.

Hand Pump

Delivers 20Gal. per 100 strokes for reliable manual fuel dispensing.

Meter

Mechanical Meter

20GPM mechanical flow meter.

Digital Meter

Digital Meter 1in. NPT 4 digit LCD readout for 3 to 30 GPM (10 to 100 LPM). Factory calibrated for fuel in US gallons. Accuracy up to +/- 5%. Operating temperature range 14-130 °F.
