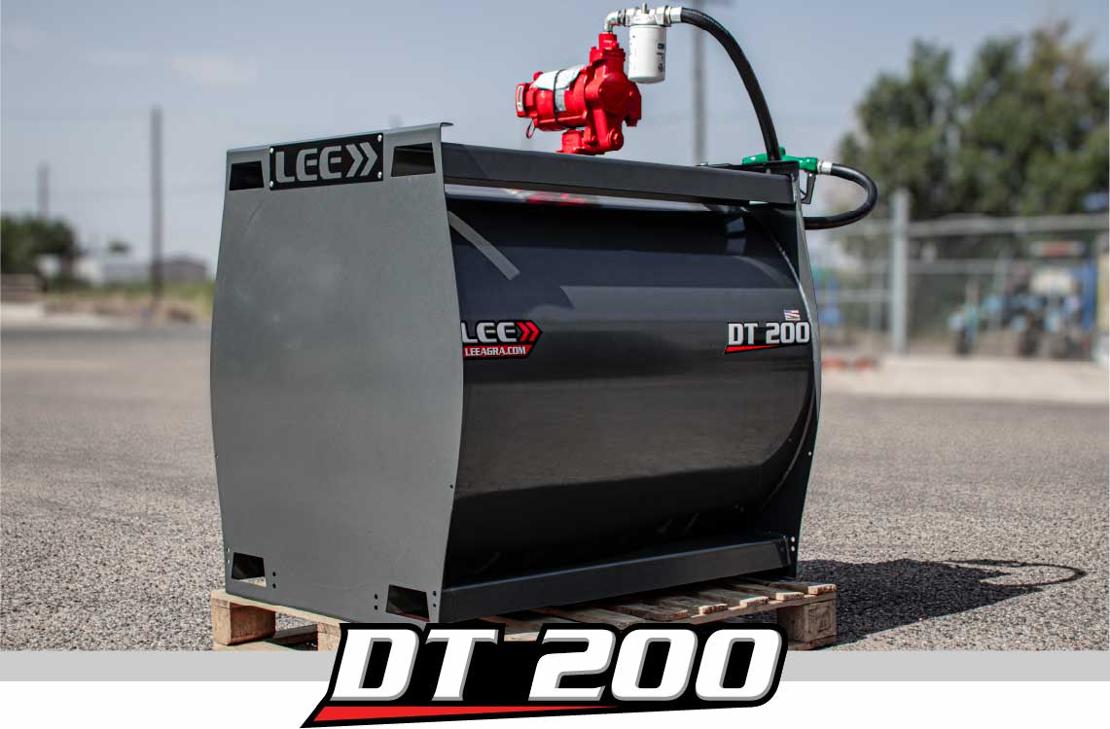

LEE DT 200 Diesel Fuel Tank

This portable diesel fuel tank stores and transports class-3 combustible materials.
It's perfect for refueling on the go.

Odoo • Text and Image

LEE DT 200 Features


Our superior quality tank is now available in a size perfect for the small acreage farmer! Easily store and transport your class 3 combustible materials without a trailer.

Piping System

Plumb 5 together to get 1000 gallons of portable fuel storage and utilize bolt holes on flanges for mounting or stacking.


Enjoy the standard-issue forklift rails for easy transporting.

LEE DT 200 Specifications


  • Gauge and fill cap standard

  • 10 Ga. Steel

  • Superior Welding

  • Powder Coating


  • Capacity: 200 Gallons

  • LxWxH: 47.25in., 38in., 41.25in.

  • Dry Weight: 430lb.

  • Loaded Weight: 1890lb.


  • Fits on a standard size pallet.

  • Wrapped in plastic

  • Ships LTL via standard carriers.

LEE DT 200 Configurations


Fill-Rite 20GPM 12V

  • Biodiesel up to B20, Diesel, Gasoline, Mineral Spirits

  • 19amps

  • DC

Fill-Rite 13GPM 12V

  • Biodiesel up to B20, Diesel, Gasoline, Mineral Spirits

  • 20amps

  • DC

Fill-Rite Piston Hand Pump FR152

  • Diesel, Gasoline, Light Oils, Mineral Spirits

  • 20 GL/100 strokes

No Pump

Don't need a pump? No problem!


GPI Digital Fuel Meter

  • Gasoline up to E15, Diesel up to B20, Kerosene

  • 10 to 100 LPM (3 to 30 GPM)

  • 300 PSI (20.7 bar)

No Meter

LEE DT 200 F.A.Q.

You asked, we answered.

When a pump package is purchased for the DT 200 or DT 2×100 the standard hose length included is 1in. diameter by 12ft. long.

Yes. All DT 200 and DT 200 packages include a 2in. vented fuel cap.

The DT 200 has four 2in. threaded openings on top of the tank and one 2in. threaded opening on the bottom.

Yes. The DT 200 is designed to fit easily into the back of a full-size pickup.

Yes. Every DT 200 includes a 2in. bung opening to drain the tank.

Usually 2-5 business days.

Configure Your LEE DT 200 Today!

Contact our sales team  for any questions or additional information.
