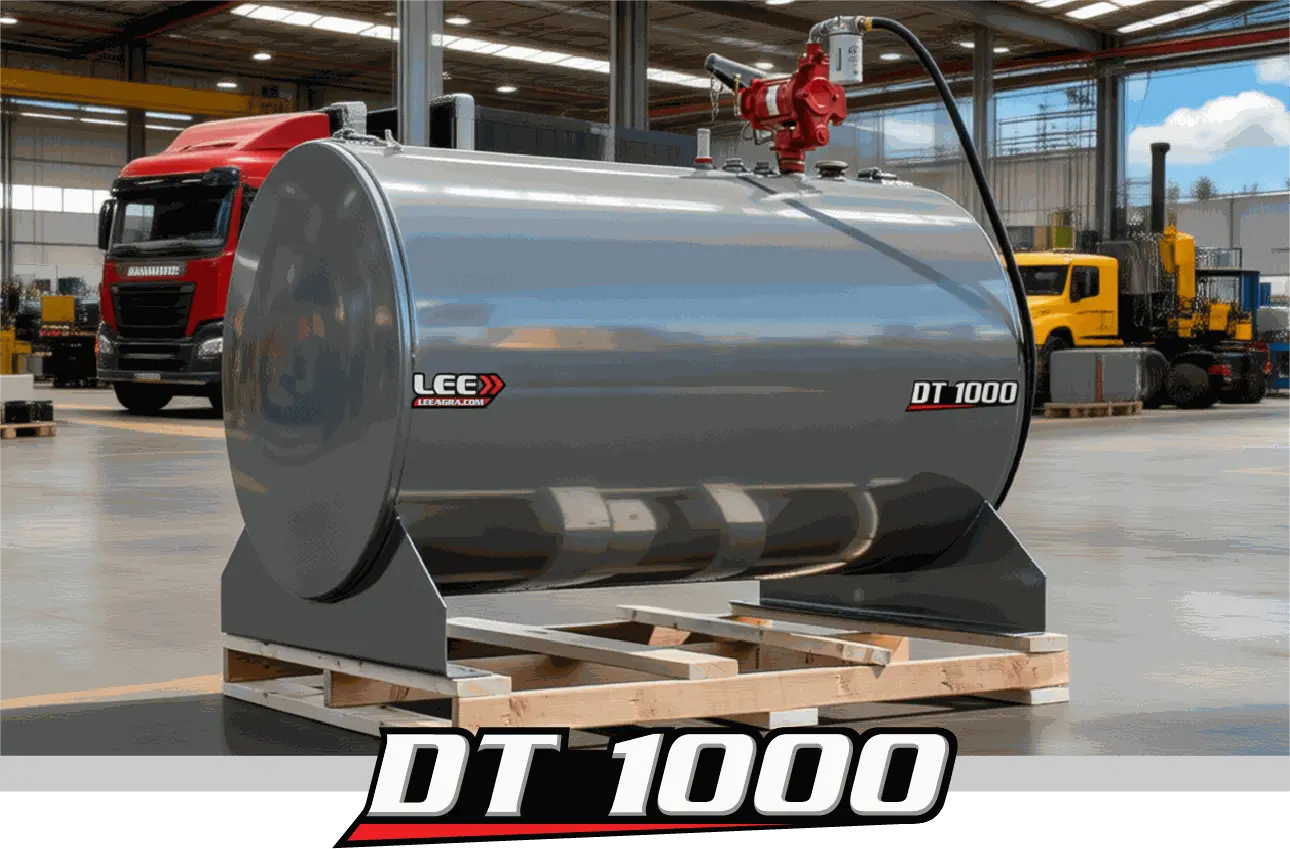

LEE>> DT 1000 Diesel Fuel Tank
The LEE>> DT 1000 Diesel Fuel Tank holds 1000 gallons of fuel and comes with D-Ring Hooks for easy transporting.
LEE>> DT 1000 Features
Portable
Easily store, dispense, and transport 1000 diesel fuel or other class 3 combustible materials without a trailer.
Piping System
Plumb 2 together to get 2000 gallons of portable fuel storage and utilize D-Ring hooks for easy transport.
Liquid Level
The DT 1000 comes with a fuel gauge and vented fuel cap so you don't need to worry about the pressure inside your tank.
LEE>> DT 1000 Specifications
Structure
- 2in. Drain Port
- 10 Ga. Steel
- Superior Welding
- Powder Coating
Measurements
- Capacity: 1000 Gallons
- LxWxH: 72in., 52in., 50in.
- Dry Weight: 1500lb.
- Loaded Weight: 9500lb.
Shipping
- Fits on oversized pallet
- Wrapped in plastic
- Ships LTL via standard carriers
LEE>> DT 1000 Configurable Options
Powder Coating
Color Options
The DT 975 can be produced in seven different colors.
Gray is the standard and most popular color option for this model. There is a $150.00 upcharge for other colors.
Fuel Pumps
20GPM Pump
12V DC, 20 GPM heavy-duty, cast-iron, rotary vane fuel transfer pump.
25GPM Pump
Pump 25gpm, 1in. nozzle, 12ft. of 1in. hose, 1in filter kit, 18ft. DC cable with clamps, (less siphon tube)
20GPM 115V
115V AC, 20 GPM, operates at 5.5 amps, and is compatible with diesel and gasoline.
Meter
Mechanical Meter
20GPM mechanical flow meter.
Digital Meter
Digital Meter 1in. NPT 4 digit LCD readout for 3 to 30 GPM (10 to 100 LPM). Factory calibrated for fuel in US gallons. Accuracy up to +/- 5%. Operating temperature range 14-130 °F.
Hose Reel
25ft. Hose Reel
Retractable hose reel with 25ft. long, 1in. wide hose.
Extra Features
Containment Tray
Containment tray designed for the DT 1000 diesel fuel tank and features forklift rails.
Skid Frame
Tank mounted skid frame for easy storage.
Build Your LEE>> DT 1000 Today!
Contact our sales team
for any questions or additional information.
